20w 30w 40w 50w high power outdoor ip65 led solar street light 1400ma driver

Shenzhen Zhongfu Optoelectronics Technology Co., Ltd.
Contact Now

20w 30w 40w 50w high power outdoor ip65 led solar street light 1400ma driver

  • 1
  • 2
  • 3

Place of Origin : Guangdong, China (Mainland)

Brand Name : Turefull

Model Number : ZF-HLB-30W-XL

Certification : CE/ROHS/FCC/TUV/SAA

Supply Ability : 10000 Piece/Pieces per Month

Packaging Details : one piece in small box,50 piece in one carton box

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T

Delivery Time : 5-10 work days

Output Power : 30W

Output Frequency : 47-63HZ

Output Current : 0.9A

Warranty : 5 Years

Type : Consant Current

Protection : OVP/OCP/SCP/OTP

Efficiency : 88%

Housing : Full Aluminum

Capacitor : Rubycon/king-box

Size : 130*44*33m

Contact Now

20w 30w 40w 50w high power outdoor ip65 led solar street light 1400ma driver


Features



1. Universal input voltage(90-277V)



2. Output current and voltage can be customized



3. Support(1-10V/Pwm/resistance three-in-one online dimming



4. high PFC,low ripple



5. high efficiency(up to 93%)



6. protection design:OVP/OCP/SCP/OTP)



7. 5 years warranty



Parameters

Model ZF-HLB-30-30 ZF-HLB-30W-36 ZF-HLB-30-50 ZF-HLB-50-108 customized









output

DC voltage 30v 36v 50v 108v customized
Rated current 1.1A 0.9A 0.6A 0.3A customized
Rated power 30W 30W 30W 30W 30W
Ripple&noise 150Mvp-p 150Mvp-p 200Mvp-p 200Mvp-p 200Mvp-p
voltage tolerance ±1% ±1% ±1% ±1% ±1%
Line regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Setup,rise time 500ms,80ms/115VAC 500ms,80ms/230VAC
Hold up time 16ms / 115VAC, 230VAC









Input

Input voltage 90-277V
Frequency range 47-63HZ
Power factory PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load
Total Harmonic distortion THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC)
Efficiency 87% 88% 89% 90%
AC current 0.64A / 115VAC 0.32A / 230VAC 0.3A / 277VAC
Inrush current COLD START 55A(twidth=265μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Leakage current <0.75mA / 277VAC



Protection

Over current Constant current limiting, recovers automatically after fault condition is removed
Short circuit Hiccup mode, recovers automatically after fault condition is removed
Over temperature Shut down o/p voltage, re-power on to recover







Environment

Working Temp. Tcase= -40 ~ +60℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
Max.Case Temp. Tcase= +80℃
Working Humidity 20 ~ 95% RH non-condensing
Temp.coefficient ±0.03%/℃(0 ~ 60℃)
Vibration 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
Safty and standards Safty standards EN 61347-1:2008+A1:2011+A2:2013 ,EN 61347-2-13:2006, EN 62493:2010
Isolaton resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
EMC emission Compliance to EN55015, EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3,GB17743 and GB17625.1
EMC immunity Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)





Product Dimensions


20w 30w 40w 50w high power outdoor ip65 led solar street light 1400ma driver

20w 30w 40w 50w high power outdoor ip65 led solar street light 1400ma driver

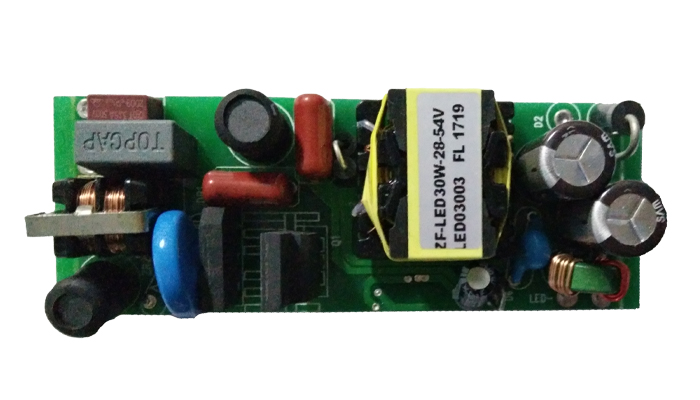

production processing

20w 30w 40w 50w high power outdoor ip65 led solar street light 1400ma driver
