Durable Dimmable Constant Current Led Driver 47-63hz Output Frequency

Shenzhen Zhongfu Optoelectronics Technology Co., Ltd.
Contact Now

Durable Dimmable Constant Current Led Driver 47-63hz Output Frequency

  • 1
  • 2

Place of Origin : China (Mainland)

Brand Name : turefull

Model Number : ZF-HTG-80XL

Supply Ability : 10000 Piece/Pieces per Month 0-10V dimmable LED driver

Packaging Details : Use carton box,one piece in one small box and 30 boxes in one cartons

MOQ : 100 - 499 Pieces

Price : Negotiable

Output Power : 51 - 100W

Output Type : Single

Input Voltage : 90-277V

Output Frequency : 47-63HZ

Output Current : 1.4A

product name : Constant current LED driver 0-10 V dimmable LED driver

color : Black

application : LED lighting

waterproof grade : IP67/IP65

dimming method : 0-10V

Efficiency : 0.85

PFC : 0.9

Housing case : full Aluminum

warranty : 3 years

Output Voltage : 28-48V

Port : shenzhen

Contact Now

Constant current LED driver 0-10 V dimmable LED driver

Features

  1. Universal AC input voltage 90-277V
  2. Adopt active PFC function
  3. Protection design:over current,over voltage,over-temperature
  4. IP33 waterproof
  5. PWM dimming(3-12V PWM signal
  6. suitable for LED lighting
  7. Conform to World Lighting safty equipment standards
  8. 3 years

Specification

Model No.   ZF-HTG-70H-48 ZF-HTG-70H-48 ZF-HTG-70H-48 ZF-HTG-70H-48 ZF-HTG-70H-48 Customized
      output         No load voltage  49VDC  66VDC  89VDC  101VDC  131VDC  undetermined
output current  1.4A  1.1A  0.81A  0.71A  0.55A  undetermined
Fan-output voltage  12VDC
fan-output current  0.3A
PWM control signal voltage  3-12V DC
PWM frequency  2-15KHZ
dimming range  0-100%
output power  75W  75W  75W  75W  75W  75W
Ripple and noise  3000mVAC  3000mVAC  23000mVAC  2000mVAC  2000mVAC  3000mVAC
output voltage range  28-48VDC  35-65VDC  50-88VDC  60-100VDC  80-130VDC  customized
Current Error  ±3%  ±3%  ±3%  ±3%  ±3%  ±3%
Efficiency  88%  88%  89%  89%  89%
Line regulation  ±0.5%  ±0.5%  ±0.5%  ±0.5%  ±0.5%  ±1%
load ragulation  ±0.5%  ±0.5%  ±0.5%  ±0.5%  ±0.5%  ±1%
        input start time  500mS,1000ns(full load)230VAC/115VAC
Hold time  10mS full load 230VAC/115VAC
Frquency range  47-63HZ
PFC  PF>0.94 230V AC full load
input voltage  100-300VAC
AC current  0.9A/115VAC,0.5A/230VAC,0.4A/277VAC
surge current   cold start <50A/230VAc
leakage current       <0.75MA/277VAC
   protection over current protection       95-105%  protect mode:constant limitation
over-voltage protection       protect mode:constant voltage limitation
over-temp.       145°C ± 10°C,start
  Environmental Work-temp.       --40--+55°C
Work-humidity       20-95%RH,no condensation
Storage temp.humidity       --40--+80°C, 10-95%RH,
Max temp.rise       +55°C No wind open environment
 Vibration Resistance       10-500HZ,5G 12 minute/cycle,X,Y,ZAxis each 72 minutes
 withstand voltage       I/P-O/P:3.75KVAC
Insulation Resistance I/P-O/P:100M Ohms/500VDC/25°C/70%RH
Safety standard EN61347-1:2008+A1:2011+A2:2013,EN61347-2-13:2006,EN62493:2010
    Others MTBF ≥150Khrs MIL-HDBK-218F(25°C)
size  L153*W53*H37.5mm
packing Use box

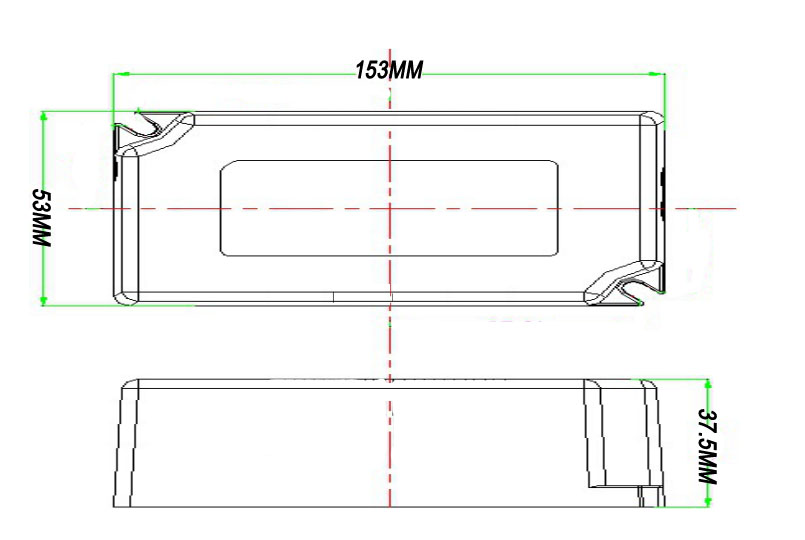

 Dimensions

Durable Dimmable Constant Current Led Driver 47-63hz Output Frequency

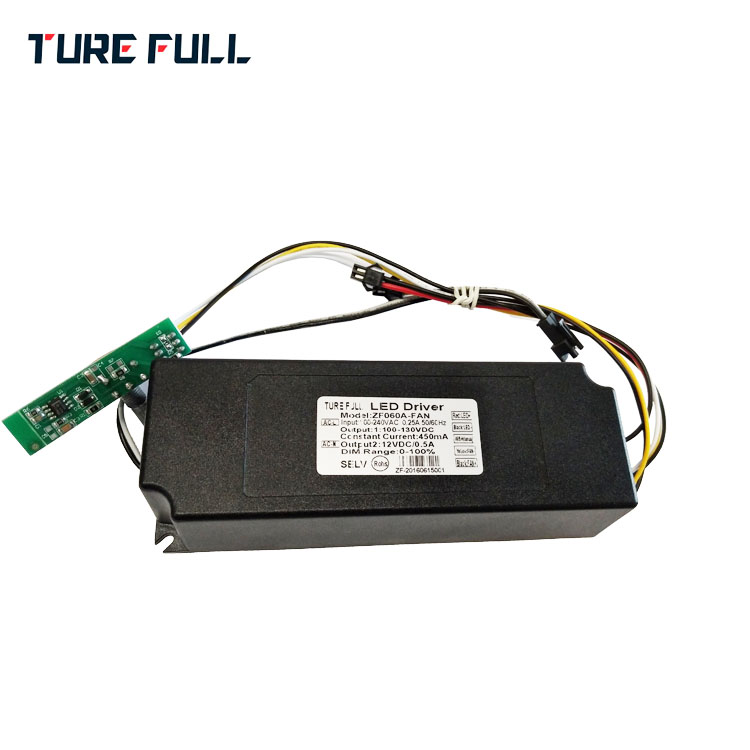

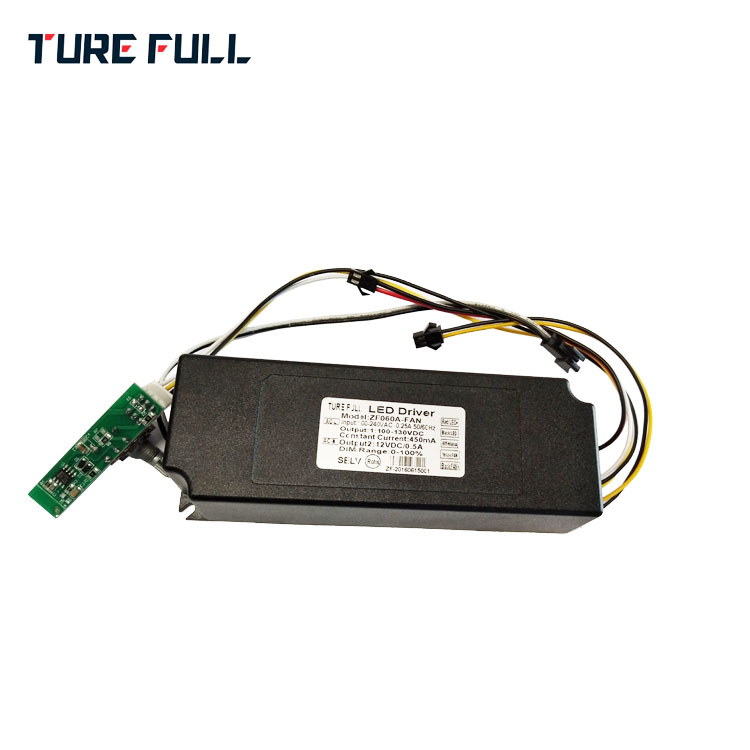

Product show



 Durable Dimmable Constant Current Led Driver 47-63hz Output FrequencyDurable Dimmable Constant Current Led Driver 47-63hz Output Frequency

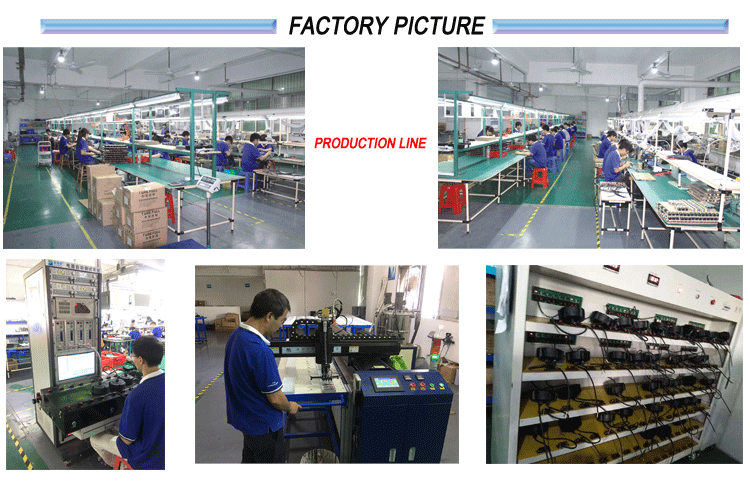

Company information

Shenzhen ZhongFu Photoelectric Technology Co. Ltd located in Shenzhen China since 2009,is a High-tech Enterprise which is engaged in designing,manufacturing and selling all kinds of indoor&outdoor LED Lighting drivers.Our company have experienced R&D team and advance R&D test equipment,we established independent quality management system,got ISO9001 quality management system certification,achieved “National New High-tech enterprise,Chinese enterprises credit AAA grade honorary title.



We mainly concentrate on constant current street/flood /tunnel light driver,high bay/grow light driver,DC/DC converters,etc.,can offer OEM / ODM service. Our products have been passed CE ROHS TUV,SAA CCC certification,the product sells all around Europe,Northern America, Southeast Asia.

 Durable Dimmable Constant Current Led Driver 47-63hz Output Frequency

Durable Dimmable Constant Current Led Driver 47-63hz Output Frequency

Certification

Durable Dimmable Constant Current Led Driver 47-63hz Output Frequency

Our exhibition

Durable Dimmable Constant Current Led Driver 47-63hz Output Frequency

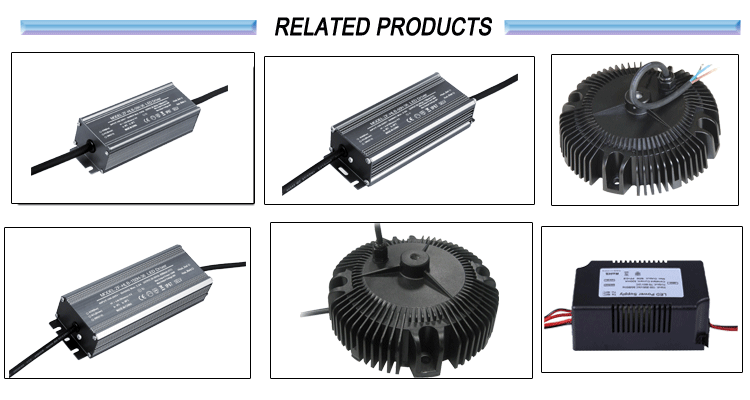

Models for choice

Durable Dimmable Constant Current Led Driver 47-63hz Output Frequency

Packing and Shipping

Durable Dimmable Constant Current Led Driver 47-63hz Output Frequency
